ʻO nā'ōnaehana uila
- Hoʻohana ia i ka gripper pneumatic
- ʻO Steel Bille Clampper
- HANOLIKI RANE: 703333333
Nā waihona huahana
Hukiʻulu
Hoʻoili Hoʻoiho
Nā Pono pili puna
Hoʻohana ia i ka maʻi pneumatic brapper, a loaʻa iā Steel Boll Clampper.
ʻO kona nui picking he 8mm
ʻO ka micropper he kukui kukui, a ua loaʻa iā ia ka hoʻolālāʻana. Hiki iā ia ke hoʻonui i kāna cpacity me kaʻole e pili ana i ka hoʻopiliʻana i ka nui o ka robot.
ʻO ka nohona maʻamau hoʻohanaʻiaʻo 0 ℃ -70 ℃, kiʻekiʻe mahana hoʻohana ma 0 ℃ -120 ℃.
He kūpono kūpono no ka hoʻonohonohoʻana o ka robot i hāʻawi'ia.3333333
Aia no ia i ka pine pneumatic.
ʻO ka micropper he kukui kukui, a ua loaʻa iā ia ka hoʻolālāʻana. Hiki iā ia ke hoʻonui i kāna cpacity me kaʻole e pili ana i ka hoʻopiliʻana o ka robot
He papale kila;
He kūpono kūpono no ka hoʻonohonohoʻana o ka robot i hāʻawi'ia.3333333

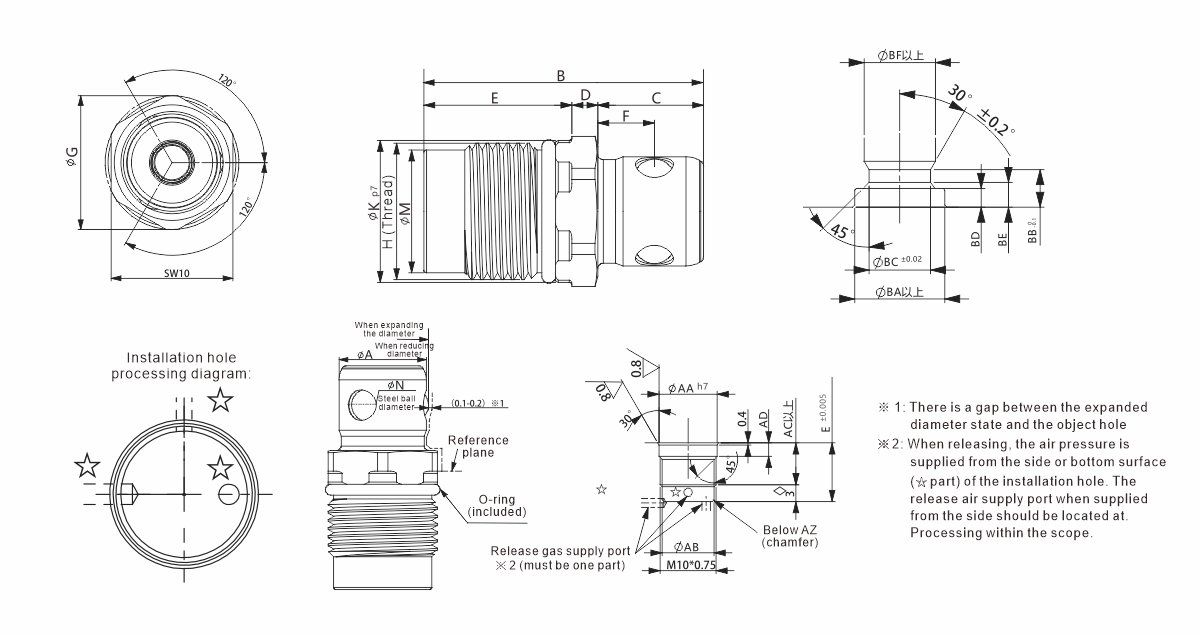

| Helu helu | Hoʻonui ana & hōʻemi i ka nui o ka nui | Na B | C | D | E | F | G | H (nominal * pitch) | K | M | N | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kahi hoʻonui | He hoemi | |||||||||||
| Mst-m10 | 8 0 -0.05 | 9.3 | 20.5 | 8 | 2 | 10.5 | 4.5 | 11 | M10 * 0.75 | 10.4 0.036 0.018 | 9 | 3 |
| Mst-m12 | 10 0 -0.05 | 11.5 | 22.5 | 9 | 2.5 | 11 | 5 | 13.5 | M12 * 1 | 12.4 0.036 0.018 | 10.7 | 3.5 |
| Mst-m14 | 12 0 -0.05 | 13.8 | 25 | 10 | 3 | 12 | 5.5 | 15.5 | M14 * 1 | 14.4 0.036 0.018 | 12.7 | 4 |
| Mst-m18 | 16 0 -0.05 | 18.2 | 29.5 | 11.5 | 4 | 14 | 6.5 | 21.2 | M18 * 1.5 | 19.4 0.043 0.022 | 16.1 | 5 |
| Helu helu | Aa | AB | Acc | Kāleʻa | AZ (Chamfer) | Ba | Bb | BC | Bd | E Maʻa | Bf |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mst-m10 | 10.4 0.018 0 | 9.3 0.07 -0.11 | 7.5 | 2.4 | 0.2 | 12 | 5 | 8.2 | 2.5 | 3.3 | 9.5 |
| Mst-m12 | 12.4 0.021 0 | 11 0.15 -0.08 | 8 | 2.4 | 0.4 | 14.5 | 5.8 | 10.2 | 3 | 4.6 | 11.7 |
| Mst-m14 | 14.4 0.018 0 | 13 0.15 -0.08 | 9 | 2.8 | 0.4 | 17 | 6.45 | 12.2 | 3.5 | 4.9 | 14.2 |
| Mst-m18 | 19.4 0.021 0 | 16.5 0.17 -0.123333333 | 10.5 | 3.8 | 0.4 | 23 | 8 | 16.2 | 4.5 | 6.5 | 18.6 |
