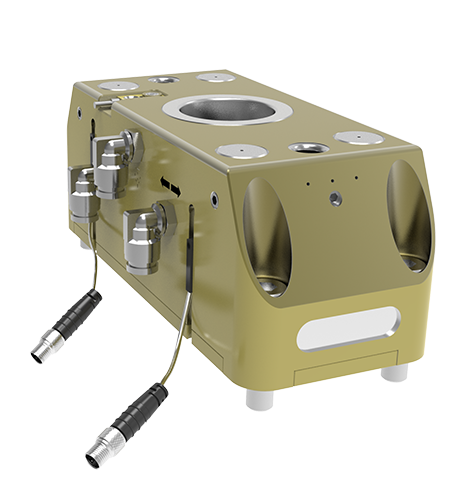

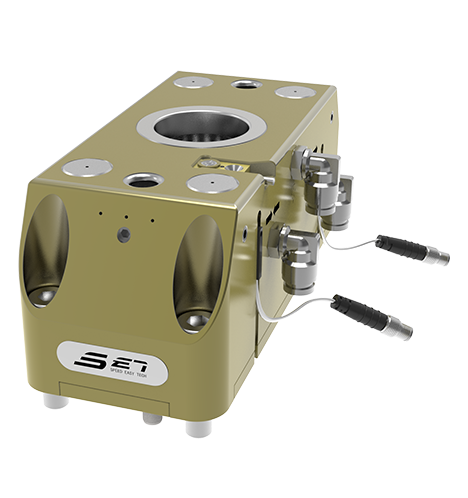

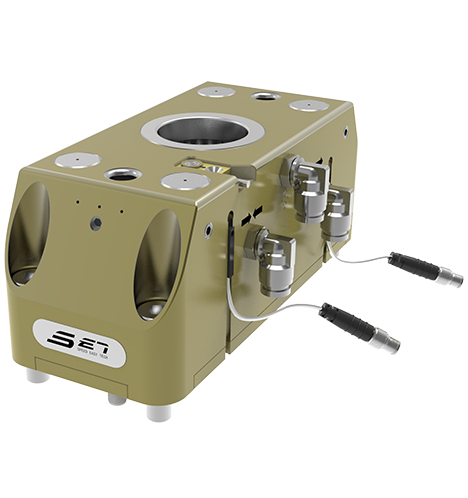

ʻAʻole i weheʻia ka coupling e ka lewa o ka ea, e hoʻopiliʻia i ka mīkini mechanically a paʻaʻia i keʻano o kahi hana o ka hana pilikino.
ʻO nā mea kilokilo paʻakikīʻole a hoʻonuiʻia, ke kaumaha 1,6kg, weheʻoleʻia o 0.6mpa.
E hoʻonohonoho hou i ka pololei kūpono i kēlā me 4,02mm, Clamping ikaika 4kn, me ka weheʻana o kaʻikeʻana i nā ulia ma kahi o kaʻikeʻana i kaʻikeʻike.
He kūpono no ka hoʻopiliʻana i ka mody axis rabot inding Handning.
ʻAʻole hiki iā Pneumatic ka mea kākau inoa, mechanical Clamming,ʻano hana me ka hana ponoʻole;
Mea:
Ikaika ikaika a me ka ikaika o ka laka;
Aia kahi adat antapter ma kahi eʻike ai i ka interface.
Ka weheʻana i ke kaomi: 0.6mpa;
Hana hou i ka hoʻoponopono pololeiʻana i kēlā me 4 0.02mm;
Me ka weheʻana, clamp usiccking interceace;
| Huhelu helu | Ke weheʻana i keʻano | Ke weheʻana i keʻano | Clamping ikaika (kn) | ʻO ka torque kiʻekiʻe (nm) (x) | ʻO ka torque (nm) (z) | Kaumaha (kg) |
|---|---|---|---|---|---|---|
| Rme-20 | R20 | Kaomiʻana o ka atmosphec | 4 | 600 | 1600 | 1.6 |
| Helu helu | A | Na B | Dn | D1 | D2 | D3 | D4 | H | H1 | H2 | H3 | H4 | K | M1 | M2 | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R20 | 125 | 52 | 159 | 142 | 104 | 96 | 32 | 62 | 26 | 47 | 65 | 13.5 | 32 | M83333333 | M8 | 10 |
