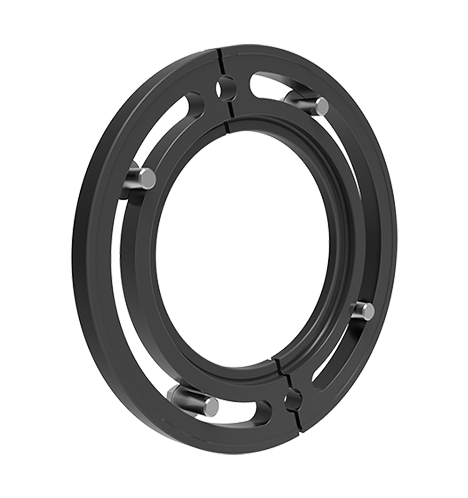

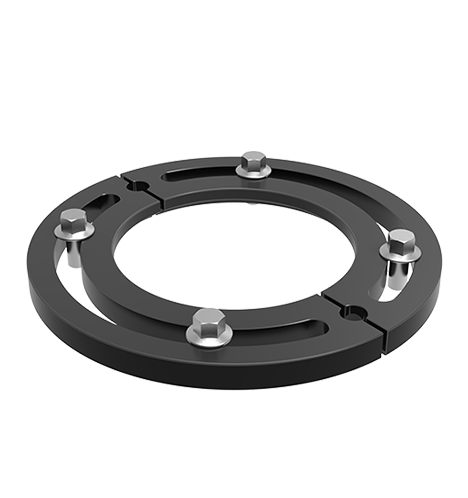

Hoʻopaʻa paʻa, P20, QPQ paʻakai Boot White Nirtrider.
ʻO Diameter 198mm, mānoanoa 13.5mm (me nā bolts).
Ua hoʻohanaʻia e kau i ka papa kuhikuhi papa inoa i kauʻia (LQTM) ma ka papa mīkini.
Hiki ke hoʻohanaʻia no nā papa'āpana t-slot e like'ole.
Hoʻohanaʻia nā flanges i nā kau inoaʻo Meda Type (LQTM) ma ka papa mīkini;
Kūpono no nā'āpana likeʻole o T-Slot Slot o ka papa'aina.
| Ka helu kauoha | Huhelu helu | ØD | ØDB | ØLk | ØL | M | H | ØE | Ke hoʻohālikelikeʻana |
|---|---|---|---|---|---|---|---|---|---|
| Gdfl-5 | Q5 | 120 | 69.5 | 88 | 96.5 | 8.5 | 9 | 79.4 | M8 |
| GDFL-10 | Q10 | 170 | 100 | 127 | 167.5 | 10.5 | 11.5 | 113 | M10 |
| Gdfl-20 | Q20 | 198 | 128 | 155 | 137.5 | 12.5 | 13.5 | 139 | M123333333 |
